REST Lua Agent

Introduction

The RestLuaAgent is an asynchronous helper for Lua scripts running within the LogicApp. It is used for sending out REST client requests.

The REST Agent may be used by any Lua script, regardless of which Service initiated that script.
For receiving REST server requests you need to use the RestLuaService Service.

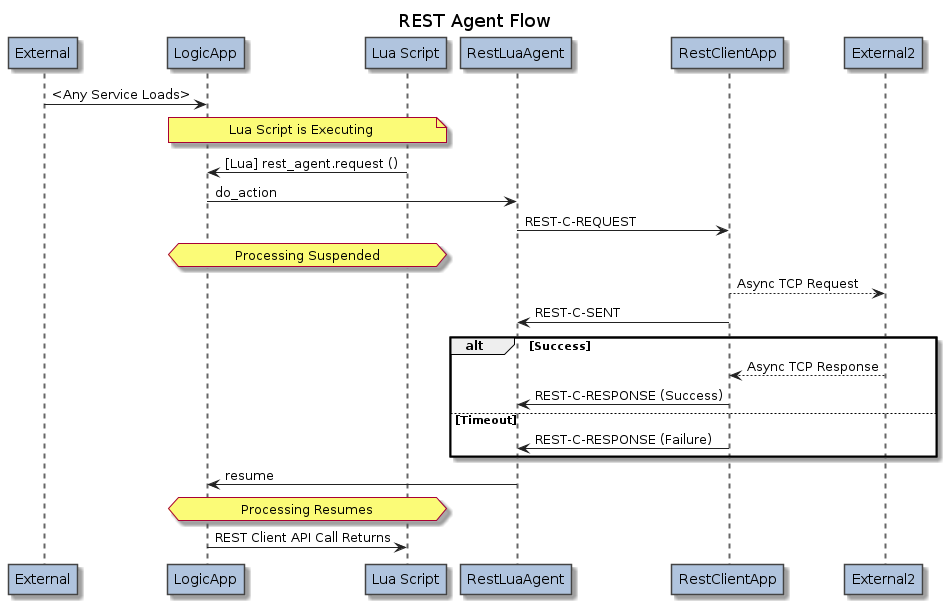

The RestLuaAgent communicates with one or more instances of the RestClientApp which can be used to communicate with one or more external REST servers.

The RestLuaAgent communicates with the RestClientApp using the REST-C-… messages.

REST Agent API methods are accessed via the “n2.n2svcd.rest_agent” module:

local rest_agent = require "n2.n2svcd.rest_agent"

Configuring RestLuaAgent

The RestLuaAgent is configured within a LogicApp.

    <?xml version="1.0" encoding="utf-8"?>
    <n2svcd>
      ...
      <applications>
        ...
        <application name="Logic" module="LogicApp">
          <include>
            <lib>../apps/logic/lib</lib>
          </include>
          <parameters>
            ...
            <parameter name="default_rest_app_name" value="REST-CLIENT"/>
          </parameters>
          <config>
            <services>
              ...
            </services>
            <agents>
              <agent module="RestClientApp::RestLuaAgent" libs="../apps/rest_c/lib"/>
            </agents>
          </config>
        </application>
        ...
      </application>
      ...
    </n2svcd>

Under normal installation, following agent attributes apply:

Parameter Name	Type	XML Type	Description
`module`	`RestClientApp:: RestLuaAgent`	Attribute	[Required] The module name containing the Lua Agent code.
`libs`	`../apps/rest_c/lib`	Attribute	Location of the `module` for RestLuaAgent.

In addition, the RestLuaAgent must be configured with the name of the RestClientApp with which it will communicate. This is configured within the parameters of the containing LogicApp.

Parameter Name	Type	XML Type	Description
`parameters`	Array	Element	Array of `name` = `value` Parameters for this Application instance.
`.default_rest_app_name`	String	Attribute	Default name for the RestClientApp with which RestLuaAgent will communicate.
`.rest_app_name_`	String	Attribute	Use this format when `RestLuaAgent` will communicate with more than one `RestClientApp`. (Default = RestLuaAgent uses only the default route/REST end-point).

The RestLuaAgent API

All methods may raise a Lua Error in the case of exception, including:

Invalid input parameters supplied by Lua script.
Unexpected results structure returned from RestClientApp.
Processing error occurred at RestClientApp.
Timeout occurred at RestClientApp.

.request [Asynchronous]

The request method accepts an request object parameter with the following attributes.

Field	Type	Description
`route`	String	The identifier of the REST endpoint to access, or `nil` for the default.
`request`	Object	Container for the parameters of the REST request that we are to send.
`.host`	String	The hostname to which the REST HTTP(S) request should be sent. (Default = Host as configured in the RestClientApp)
`.port`	Integer	The port number to which the REST HTTP(S) request should be sent. (Default = Port number as configured in the RestClientApp, or 80 or 443)
`.path`	String	The URI path with which the request should be sent. (Default = Path as configured in the RestClientApp)
`.query`	String or Object	The URI query string (the part following "?" in the URI) as per RFC 3986. e.g. `foo=foo&bar=bar` (Default = None)
`.fragment`	String	The URI fragment string (the part following "#" in the URI). (Default = None)
`.method`	String	The HTTP Request method. (Default = `POST` if content is defined, otherwise `GET`)
`.content_type`	String	The HTTP Request Content-Type header value. (Default = Content-Type as configured in the RestClientApp)
`.content`	String	The HTTP Request content. (Default = None)
`.username`	String	Username for authentication (if security is enabled). (Default = Username as configured in the RestClientApp)
`.password`	String	Password for authentication (if security is enabled). (Default = Password as configured in the RestClientApp)
`.security`	`basic`/`none`	Security mechanism to use in the REST HTTP(S) request. (Default = Security as configured in the RestClientApp)
`.http_headers`	`Array of Objects`	Additional user-level header objects to apply to an outbound HTTP Request (see below for object structure). These headers are added after any headers defined by static `RestClientApp` application configuration. You should not set the `Content-Type` or `Content-Length` headers. (Default = No Additional Headers)

Each object in the request.http_headers Array has the following structure.

Field	Type	Description
`.name`	`String`	[Required] The name of the HTTP Request header.
`.value`	`String`	[Required] The full string value of the HTTP Request header.
`.replace`	`0` / `1`	If `1` then all previous headers of this name are removed, and this header replaces them. (Default = Append to the existing headers, do not replace)

The request method returns an response object with the following attributes.

Parameter	Type	Description
`response`	Object	Container for response fields copied from the `REST-C-RESPONSE` message.
`.code`	Integer	The HTTP Response Status Code (e.g. 200)
`.content_type`	String	The HTTP Request Content-Type header value, if present.
`.content`	String	The HTTP Request content, if present.
`.http_headers`	Array of Object	The list of HTTP headers parsed from the HTTP Response (see below for object structure). All HTTP headers are present, including `Content-Length` and `Content-Type`. If a HTTP header was repeated in the HTTP Response, then it is repeated in this Array.

Each object in the response.http_headers Array has the following structure.

Field	Type	Description
`.name`	`String`	[Required] The name of the HTTP Response header.
`.value`	`String`	[Required] The full string value of the HTTP Response header.

Example (REST Client Request):

local n2svcd = require "n2.n2svcd"
local rest_agent = require "n2.n2svcd.rest_agent"

local soap_args = ...

local response = rest_agent.request (nil, {
    host = 'www.nsquared.nz',
    path = '/cgi-bin/search.cgi',
    query = 'FAQ',
    http_headers = {
        { name = 'Set-Cookie', value = 'FOO=Value+1' },
        { name = 'Set-Cookie', value = 'BAR=https%3A%2F%2Fwww.example.org%2F' }
    }
})
if (response.code ~= 200) then
    error ("Failed to access search page.")
end
if (not response.content) then
    error ("Search page returned no content.")
end

return "OK"

This example passes nil as the REST endpoint identifier. This routes the REST request to the default configured RestClientApp name. If more than one REST endpoint is present, then the first parameter is the “route”, or REST endpoint key.
